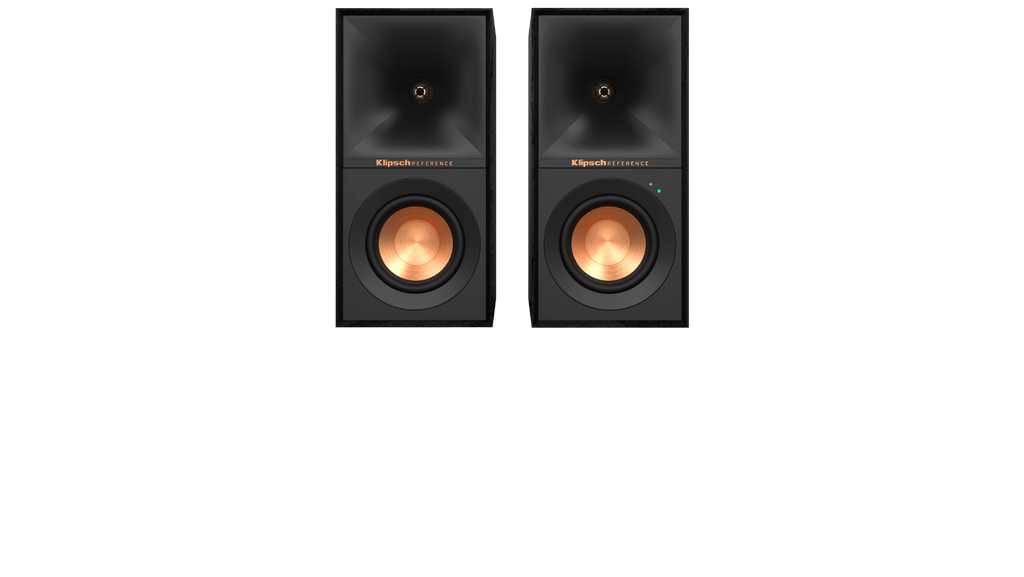

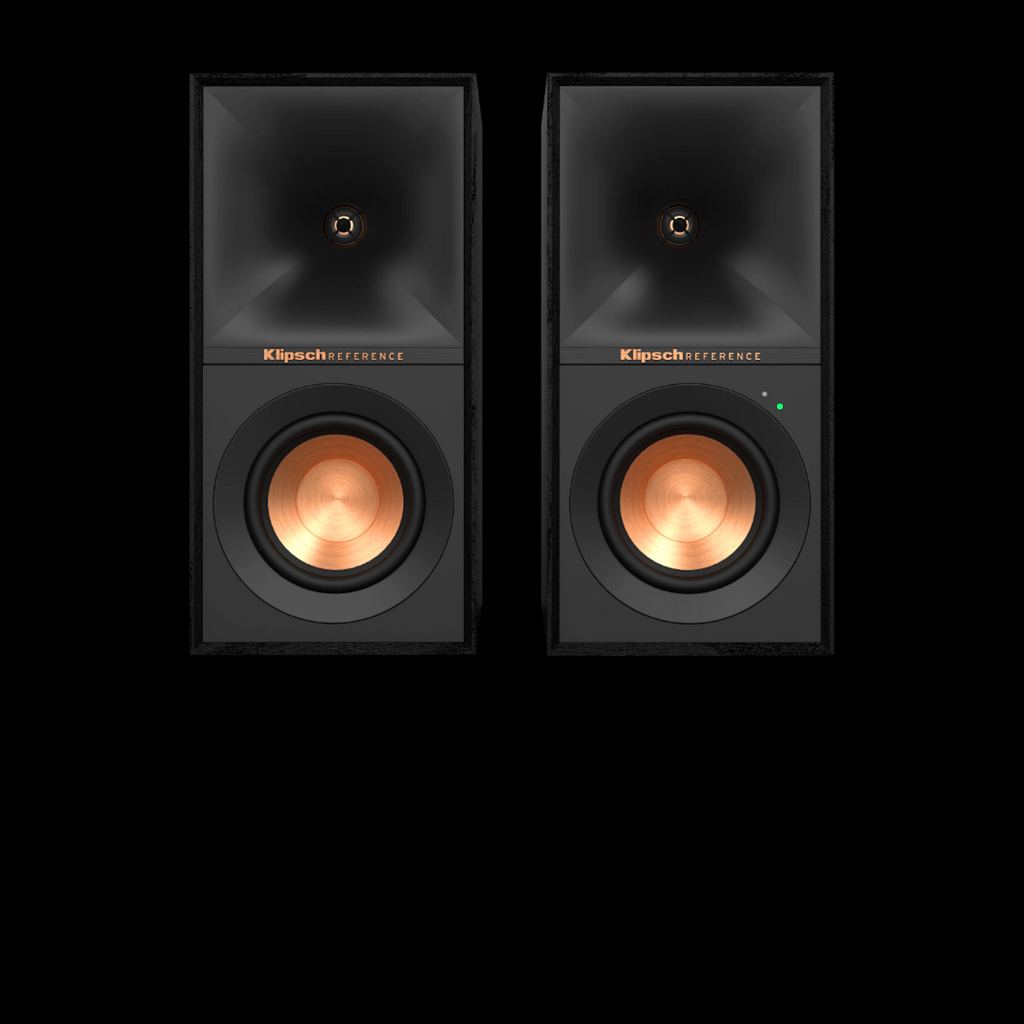

The Klipsch R-40PM is a pair of powered bookshelf monitors with the amplification and a phono preamp built in. It is the compact model of the two, a 4" woofer in a 30 cm cabinet, aimed at a desk, a bookshelf, or a smaller room where a full separates system would be overkill.

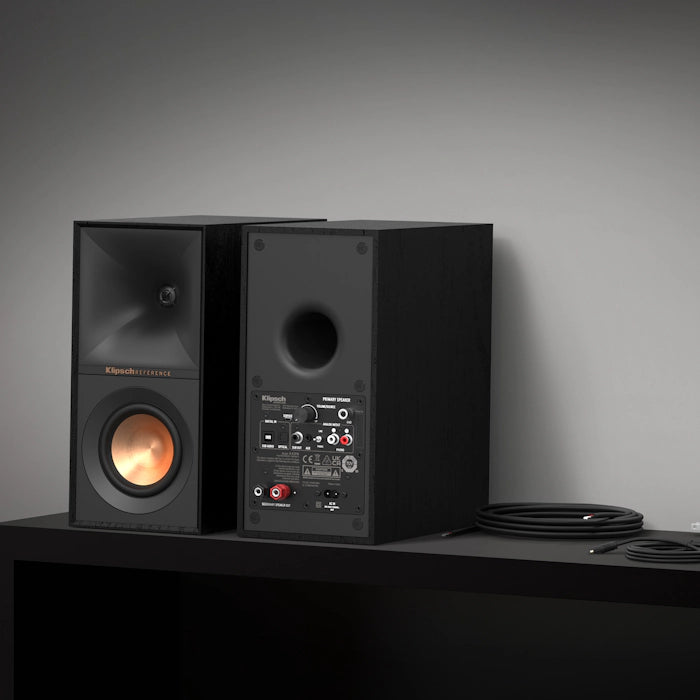

Connections
- Phono/Line analog, with Phono/Line switch and ground screw terminal
- Bluetooth wireless
- USB digital, for a computer
- Optical digital, for a TV
- 3.5mm analog mini jack
- Subwoofer output, a single RCA line-level out if you add a sub later
A remote is included, with direct source-select buttons, subwoofer level and Dynamic Bass EQ control.
Specifications
| System description | Powered Monitor (pair) |
| Frequency response | 60Hz to 20kHz |
| Dynamic bass extension | 52Hz |
| Maximum output | 100dB |
| Total system power | 70W total (240W peak); 35W per channel continuous @ <1% THD |
| High frequency driver | 1" (2.5cm) aluminium LTS tweeter on a 90° x 90° square Tractrix horn |
| Low frequency driver | Single 4" (10.2cm) spun-copper TCP woofer |
| Crossover frequency | 1730 Hz (passive) |
| Enclosure | MDF, bass-reflex via rear-firing port |
| Outputs | Single RCA line-level output for a subwoofer |
| Dimensions (H x W x D) | 11.8" x 5.7" x 10.1" (30 x 14.5 x 25.65 cm) |
| Weight | 18.3 lbs (8.3 kg) per pair |
| Finish | Black |
| Power | 100V to 240V, 50/60Hz internal power supply |

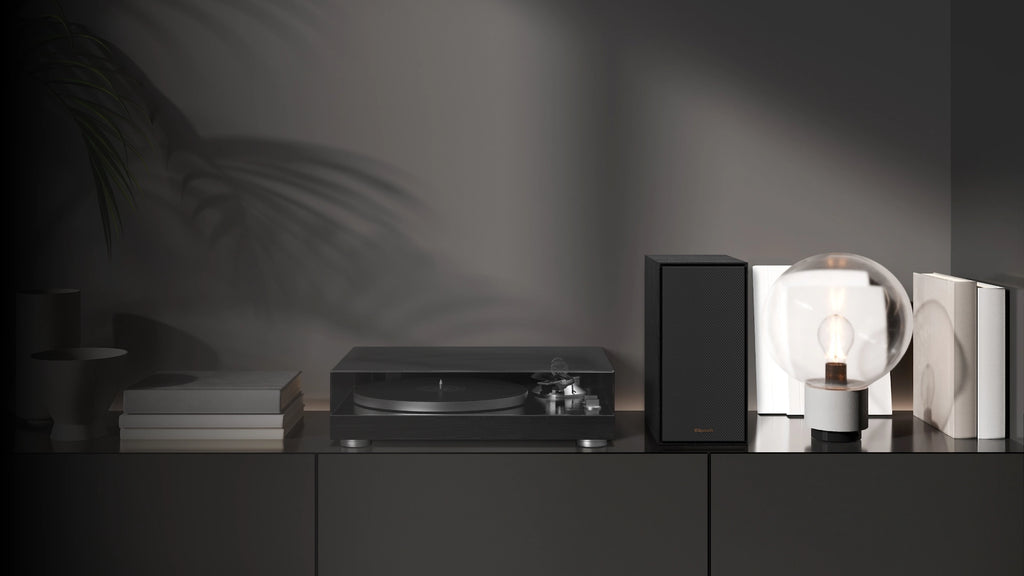

Why these suit a record player
The right speaker is the active one: it holds the amplification for both channels, and the left speaker connects to it with the supplied wire. What matters here is the built-in phono preamp, a phono input with a Phono/Line switch and a proper earth screw terminal. A moving-magnet cartridge puts out only a few thousandths of a volt and needs RIAA equalisation before anything else can use it, which normally means a separate box or an amplifier with a PHONO socket. These do it internally, so a turntable connects straight in.
That makes them one of the shortest routes from an entry-level turntable to sound in the room: deck, speakers, done. No receiver, no separate phono stage, no amplifier. If you are still deciding, our record player buying guide explains the signal chain and what each part actually does.
Flip the switch to Line and the same input takes any line-level source, so a deck that already has its own phono stage works too.
How they sound

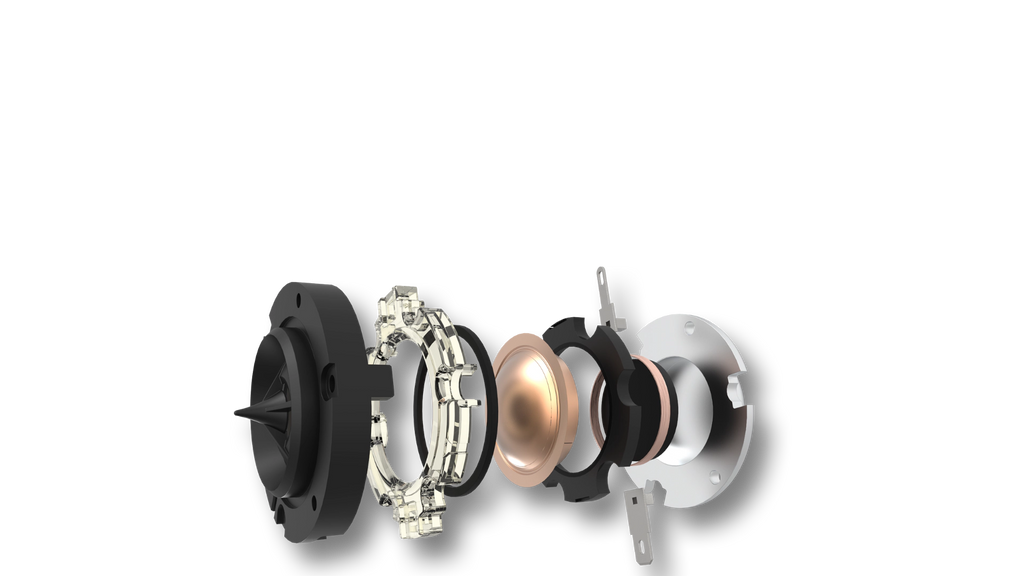

A 1" aluminium LTS tweeter sits in Klipsch's 90° x 90° square Tractrix horn, which gives the brand its characteristic directness and keeps the stereo image stable across a wide seat. The spun-copper thermoformed crystal polymer (TCP) woofer uses steeper cone angling for a smoother response through the crossover. The cabinet is MDF, bass-reflex via a rear-firing port, so leave some clearance behind them rather than pushing them flat against a wall.
Dynamic Bass EQ lifts the low end at lower volumes, where the ear is least sensitive to it. A low-profile magnetic grille lets you run them covered in black, or exposed with the copper woofer showing.
In the box
- Two speakers (the right one is the active, powered unit)
- Remote control with 2 x AAA batteries
- 4 m speaker wire with soldered tips
- 2 m power cord (region specific)
- 2 m USB Type A to Type B cable
The internal power supply is rated 100V to 240V, 50/60Hz, so it runs on Indian mains without a converter.
Which one is right for you?

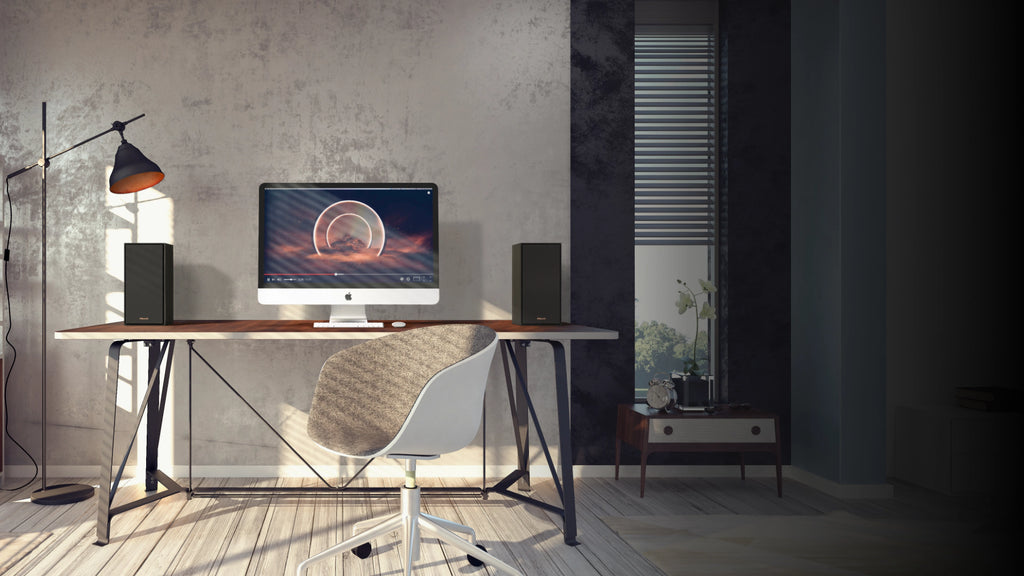

Choose the R-40PM if the speakers will sit close to you, on a desk or a shelf within a couple of metres, or if the room is small. If you want more output and lower bass for a living room, compare the R-50PM, which has a bigger woofer and roughly double the power.
Frequently Asked Questions
Can I connect a turntable directly to the Klipsch R-40PM?
Yes. The R-40PM has a phono input with a Phono/Line switch and an earth screw terminal, so a moving-magnet turntable connects straight in with no separate phono stage or amplifier. If your deck already has its own phono preamp, set the switch to Line instead.
Do I need an amplifier or receiver with these?
No. These are powered (active) monitors. The amplification is built into the right speaker, and the left speaker connects to it with the supplied wire. That is the point of the design: no receiver, no separate amp.
Will they work on Indian mains?
Yes. The internal power supply is rated 100V to 240V at 50/60Hz, so no step-down transformer is needed. The power cord supplied is region specific.
R-40PM or R-50PM, which should I buy?
The R-40PM has a 4" woofer, 70W total system power and reaches 60Hz. The R-50PM has a 5.25" woofer, 120W and reaches 55Hz, with a higher 104dB maximum output. Pick the R-40PM for a desk or small room, the R-50PM for a living room or if you want more low end.
Can I add a subwoofer later?
Yes. There is a single RCA line-level subwoofer output, and the remote has dedicated subwoofer level up, down and reset buttons.
